TDA Power Packs

Standard Equipment:

  • Fluid inlet strainer
  • Air filter, regulator, lubricator gauge & pump on/off valve
  • 6" dia (150mm) panel mtd pressure gauge
  • Pressure release valve
  • Fully assembled with all interconnecting adaptors & pipework
  • Robust painted framework


  • Stainless steel framework
  • Heavy duty wheels
  • Pressure isolation valve
  • Stroke counting facilities, pneumatic or battery powered
  • Offshore paint specification
  • Option for ATEX-approved version

Nominal Dimensions:

  • 24 x 25 5/8 x 29 1/2" high (610mm x 650mm x 750mm high)
  • Approx Weight: 230lbs (105kgs)

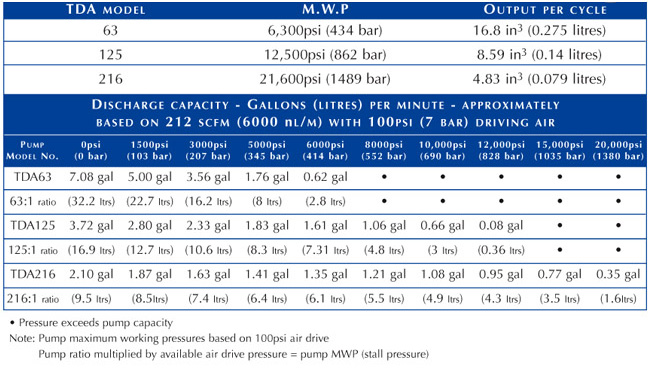

Performance Data
